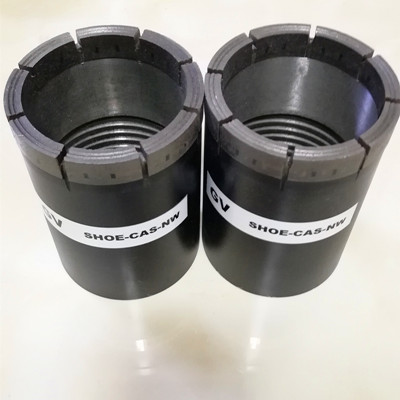

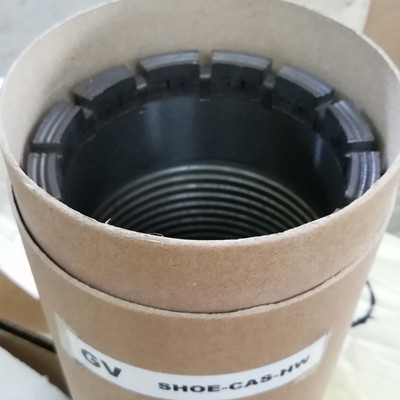

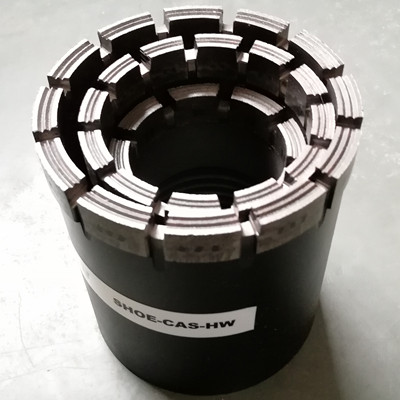

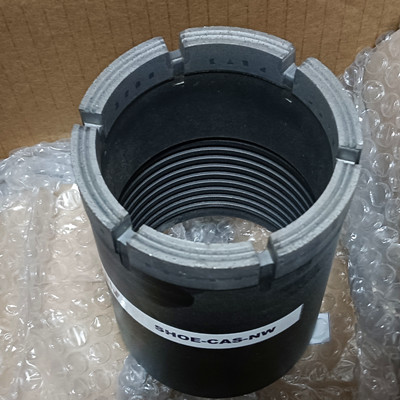

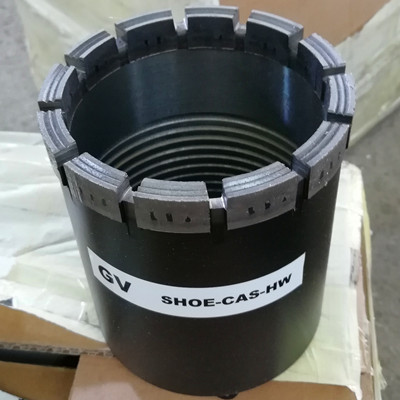

Casing shoe is used on the leading edge of a casing tube string to advance it through the overburden layer and into the bedrock by means of rotational drilling. Our standard design is Impregnated diamond casing shoe, which is the most commonly used due to its’ widest range of application and is generally the most efficient tool for advancing casing through overburden layers.
|
Size |
Outside Set Diameter |
Inside Set Diameter |
||
|
Inch |
mm |
inch |
mm |
|
|
AW* |
2.350 / 2.340 |
59.69 / 59.44 |
1.902 / 1.897 |
48.31 / 48.18 |
|
BW |
2.970 / 2.960 |
75.44 / 75.19 |
2.377 / 2.367 |
60.38 / 60.12 |
|
NW* |
3.620 / 3.610 |
91.95 / 91.70 |
2.997 / 2.987 |
76.12 / 75.87 |
|
HW** CDDA |
4.632 / 4.617 |
117.65 / 117.27 |
3.930 / 3.920 |
99.82 / 99.57 |
|
HW* DCDMA |
4.632 / 4.617 |
117.65 / 117.27 |
3.980 / 3.970 |
101.09 / 100.84 |
|
HWT |
4.632 / 4.617 |
117.65 / 117.27 |
3.930 / 3.920 |
99.82 / 99.57 |
|
PW** |
5.660 / 5.640 |
143.76 / 143.26 |
4.865 / 4.850 |
123.57 / 123.19 |
|
PWT |
5.660 / 5.640 |
143.76 / 143.26 |
4.865 / 4.850 |
123.57 / 123.19 |
|
SW* |
6.800 / 6.780 |
172.72 / 172.21 |
5.948 / 5.933 |
151.08 / 150.70 |
|
|
||||
|
Size |
Unit weight (kg) |
|||
|
AW |
0.5 |
|||
|
BW |
0.9 |
|||
|
NW |
1.6 |
|||
|
HW |
2.3 |
|||
|
PW |
3.2 |
|||
